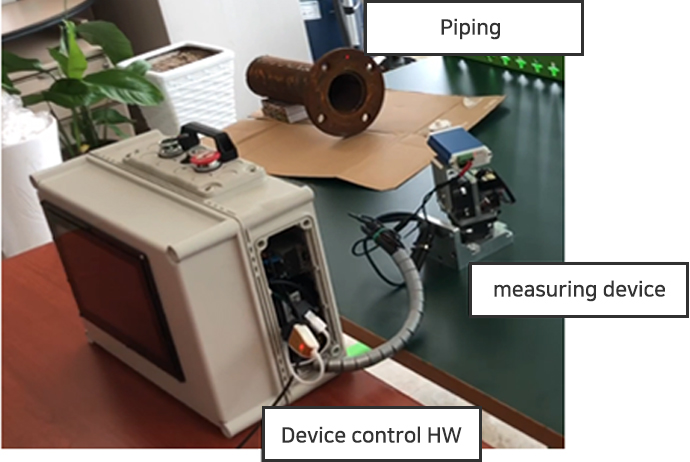

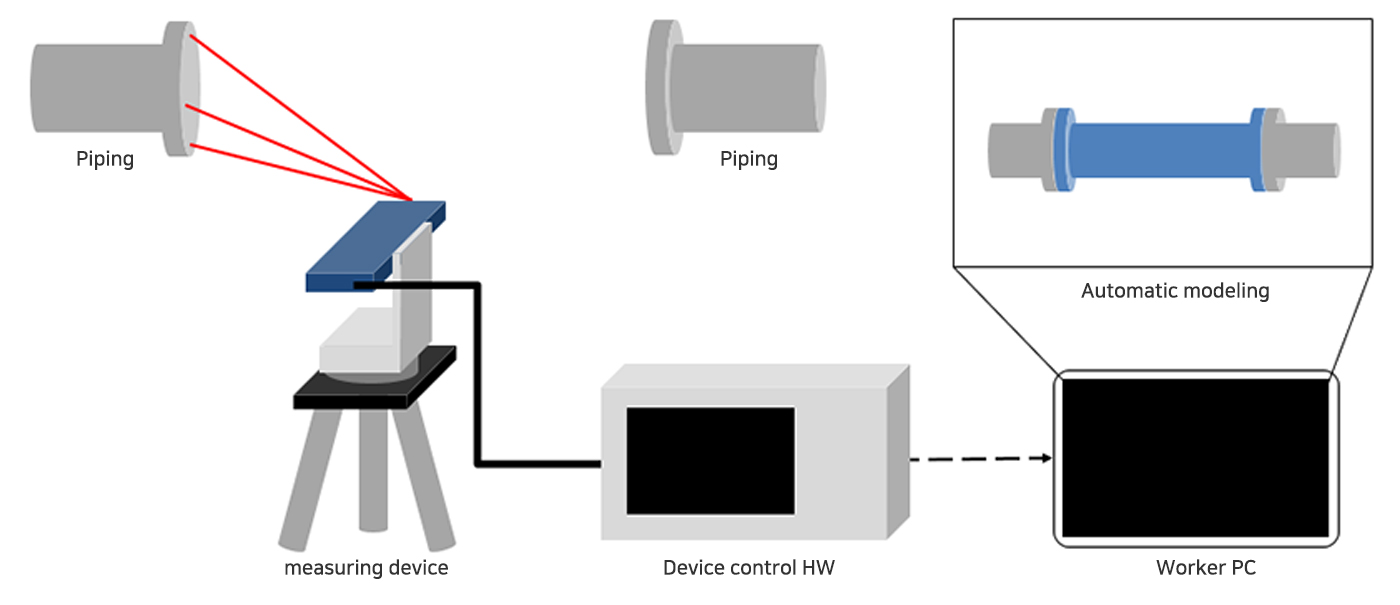

The modeling support system measures the coordinates of two pipes through a piping coordinate measuring device and plots them on the model using the measured coordinates to create an automatic production drawing, increasing the efficiency of working time and understanding of workers.
![](images/pro_05_top_img.jpg)
Measurement process
![](images/pro_05_img03.jpg)
Piping Coordinate measurement
![](images/pro_05_img04.jpg)
Data transfer to worker¡¯s PC
![](images/pro_05_img05.jpg)
Piping coordinates calculation
![](images/pro_05_img06.jpg)
Piping mounting
![](images/pro_05_img07.jpg)
Piping generation
![](images/pro_05_img08.jpg)
Drawing output
